Thyristor rectifiers

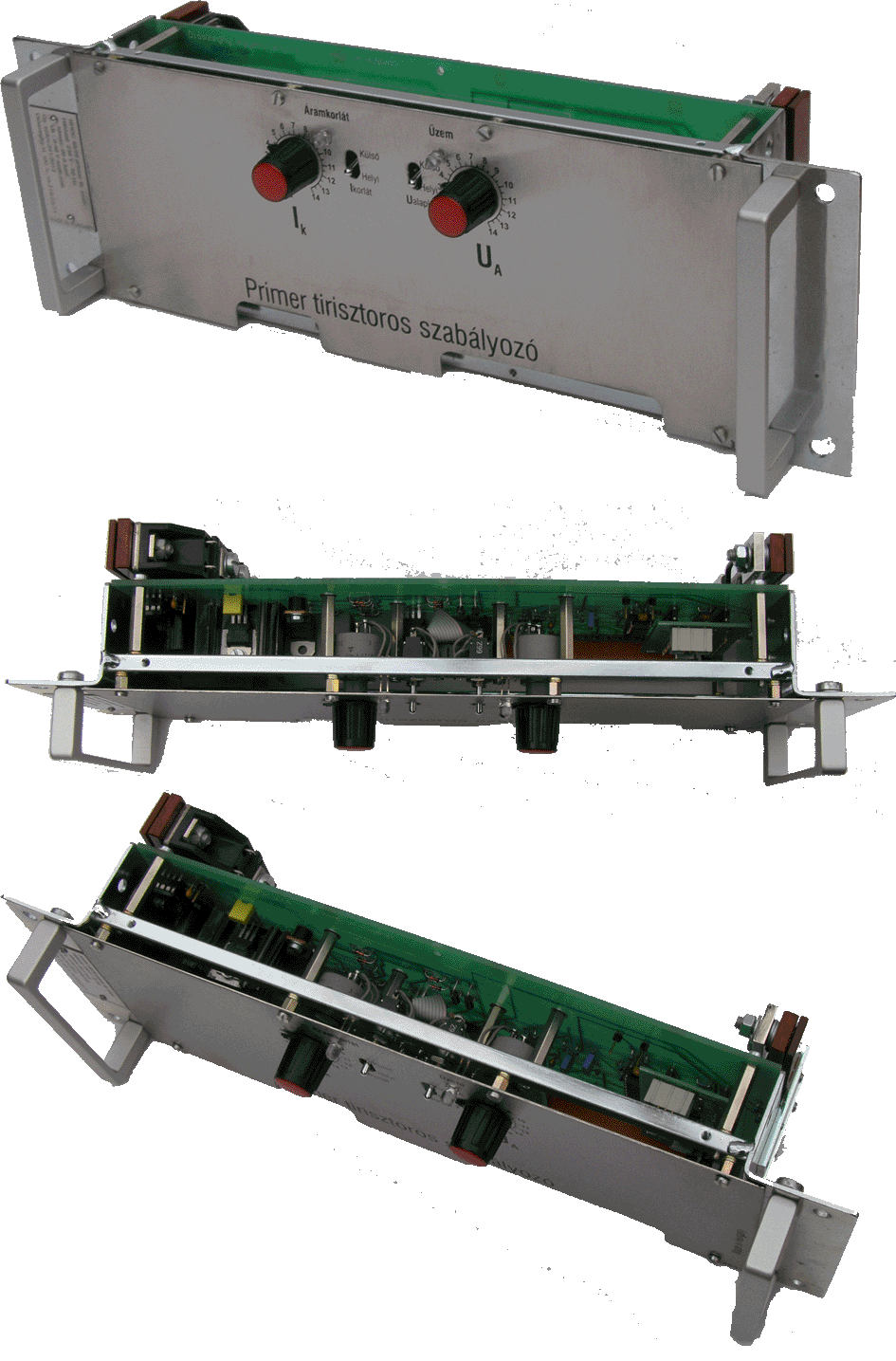

Primer thyristor regulator

U_mains = 230V ±5%; 50Hz ±1%; N;

U_dnominal = 0-50V, or as ordered

I_dnominal = 10-20-50A

Constuction: complete building element

Respone time: 180msec

Tact switch bounce time: min. 10msec

Applicable for remote control operation

Coupling: single-phase fully controlled

antiductor

 Application:

rectifier regulatoin

Single phase thyristor regulator

U_mains = 230V ±5%; 50Hz ±1%; N;

U_secunder = 10-50V, or as ordered

U_dnominal = 5-50V, or as ordered

I_dnominal = 20-100A

Constuction: complete building element

Accessories: 2 pcs thyrisztor, 1 shunt

Respone time: 180msec

Tact switch bounce time: min. 10msec

Applicable for remote control operation

Coupling: single phase half controlled

bridge

Application:

rectifier regulatoin

or make them regulabla

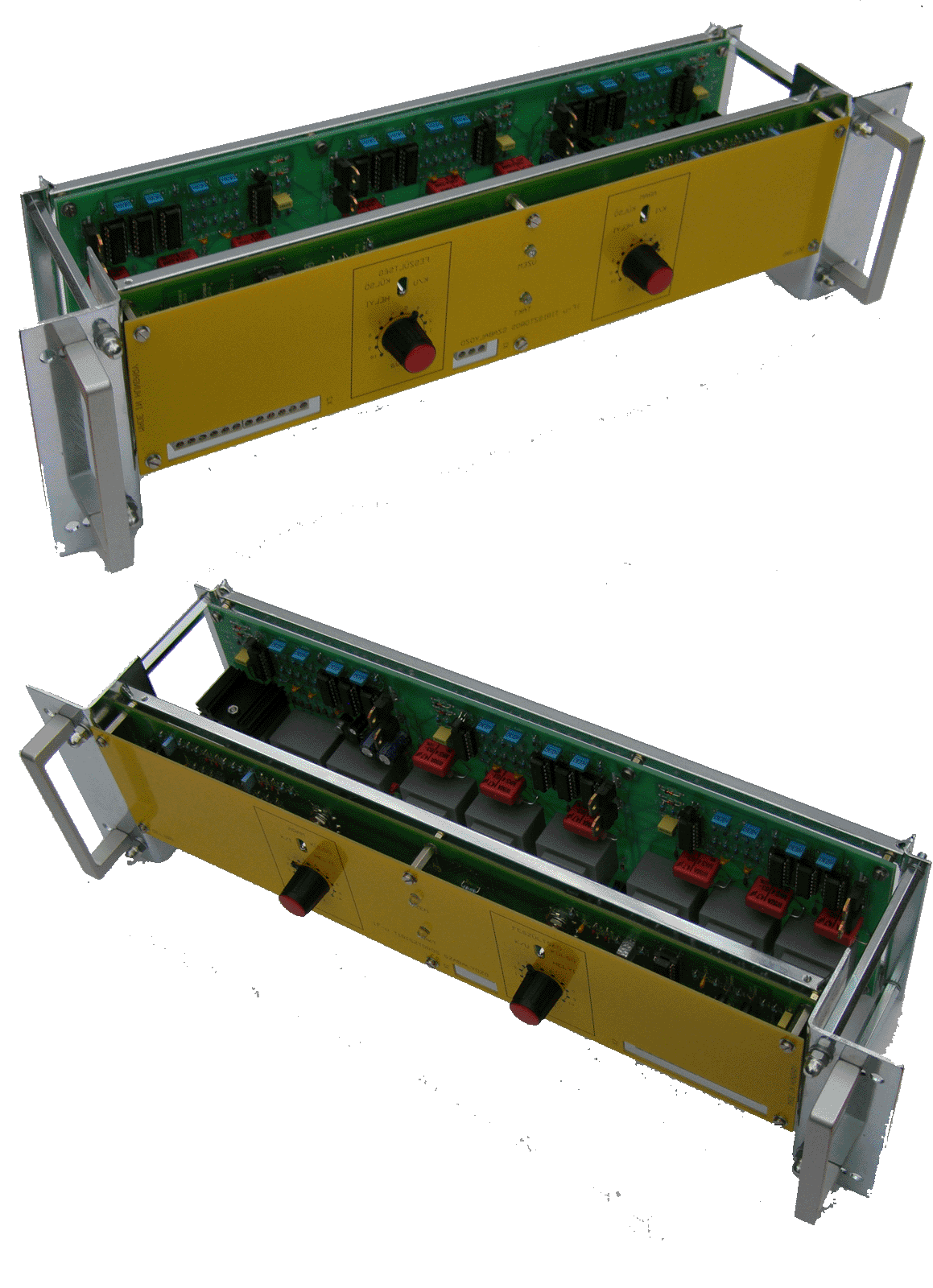

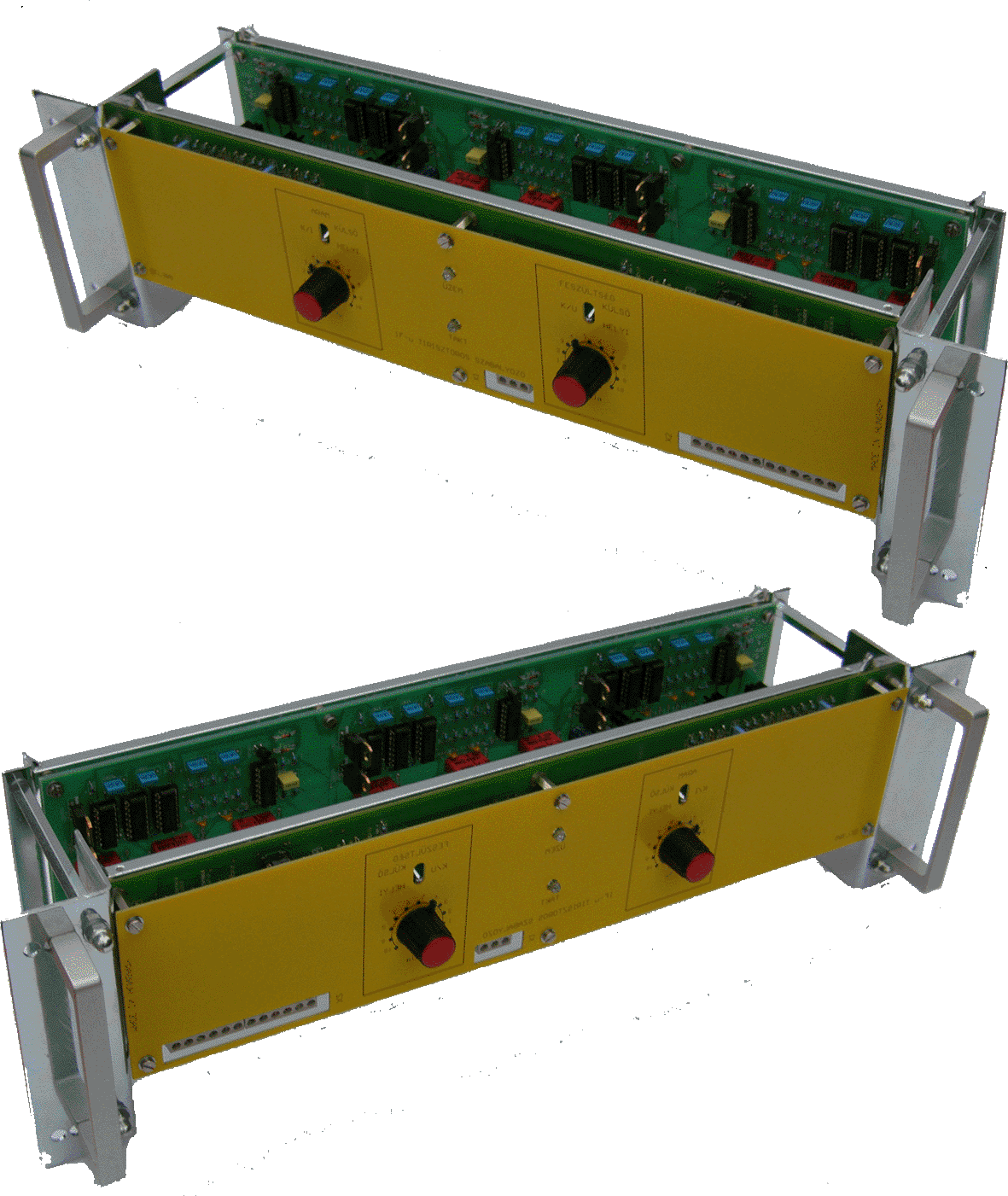

 3-phase thyristor regulator

U_mains = 3 x 400V ±5%; 50Hz ±1%; N;

U_secunder = 3 x 10 - 3 x 100V, or as

ordered

U_dnominal = 5-135V, or as ordered

I_dnominal = 20-50-100A, or as ordered

Construction: complete buliding element

Accessories: 6 pcs thyristor, 1 shunt

Response time: 180msec

Tact switch bounce time: min. 10msec

Applicable for remote control operation

Coupling: Three-phase fully controlled

bridge

Application:

rectifier regulation

or make them regulable

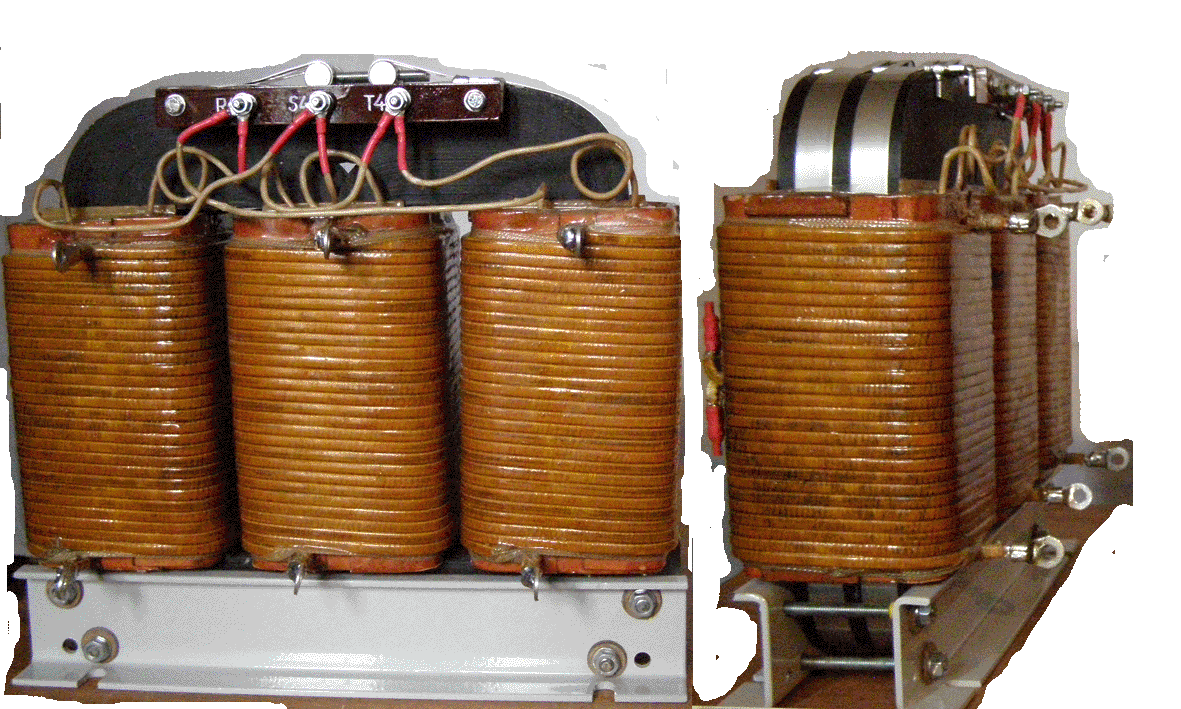

3-phase rectifier transformer

U_mains = 3 x 400V ±5%; 50 Hz ±1%; N;

Coupling: Dy5

Output: 3,2 kVA /48V-50A-DC/

Weight: 29,3 kg

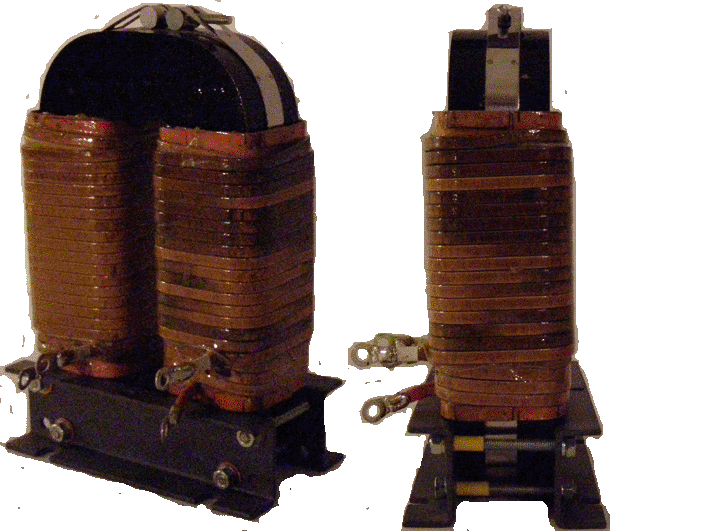

DC Iron Core Chokes

Application: 48V-DC - 50-100A-DC;

or as ordered

Weight: 9,59 kg

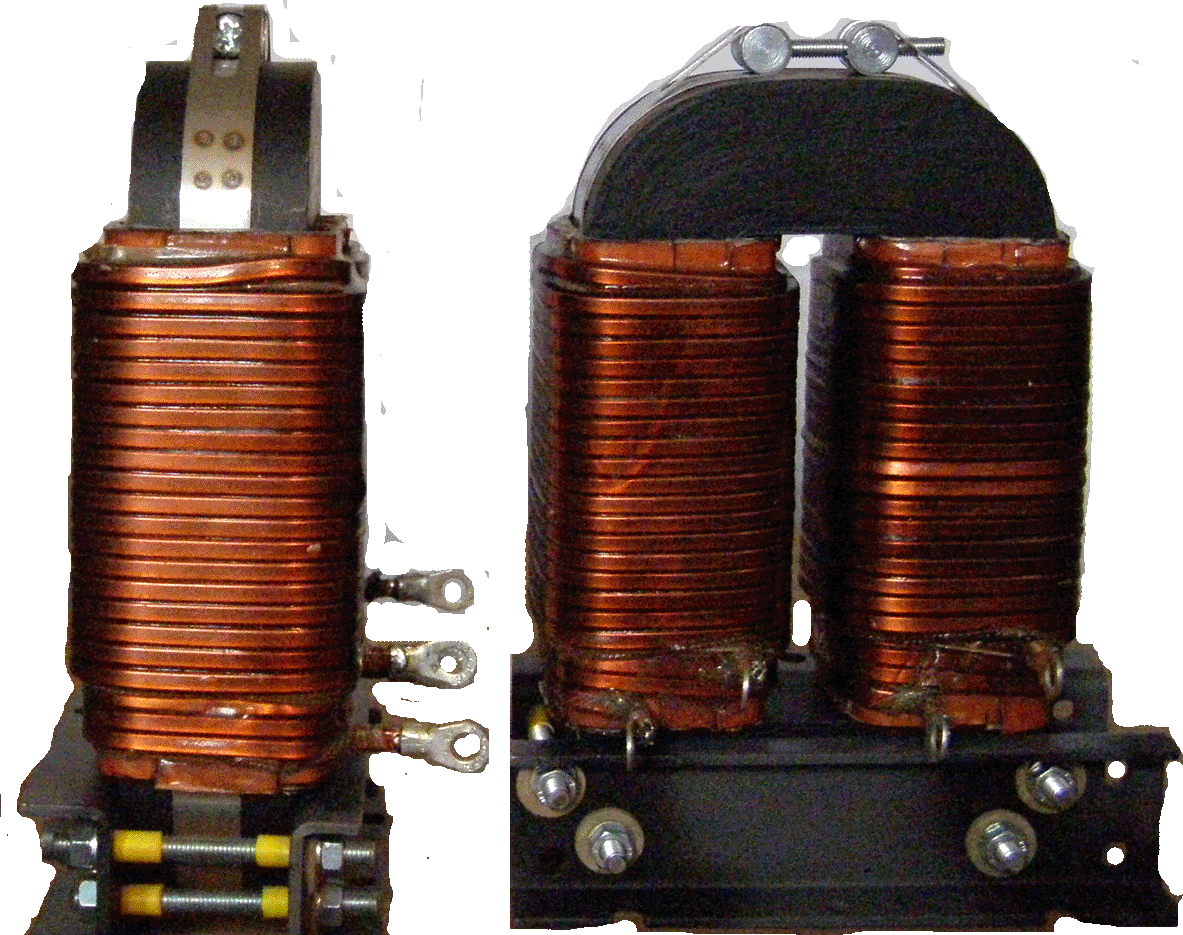

DC Iron Core Chokes

Application: 48V-DC - 30-50A-DC;

or as ordered

Weight: 7,23 kg

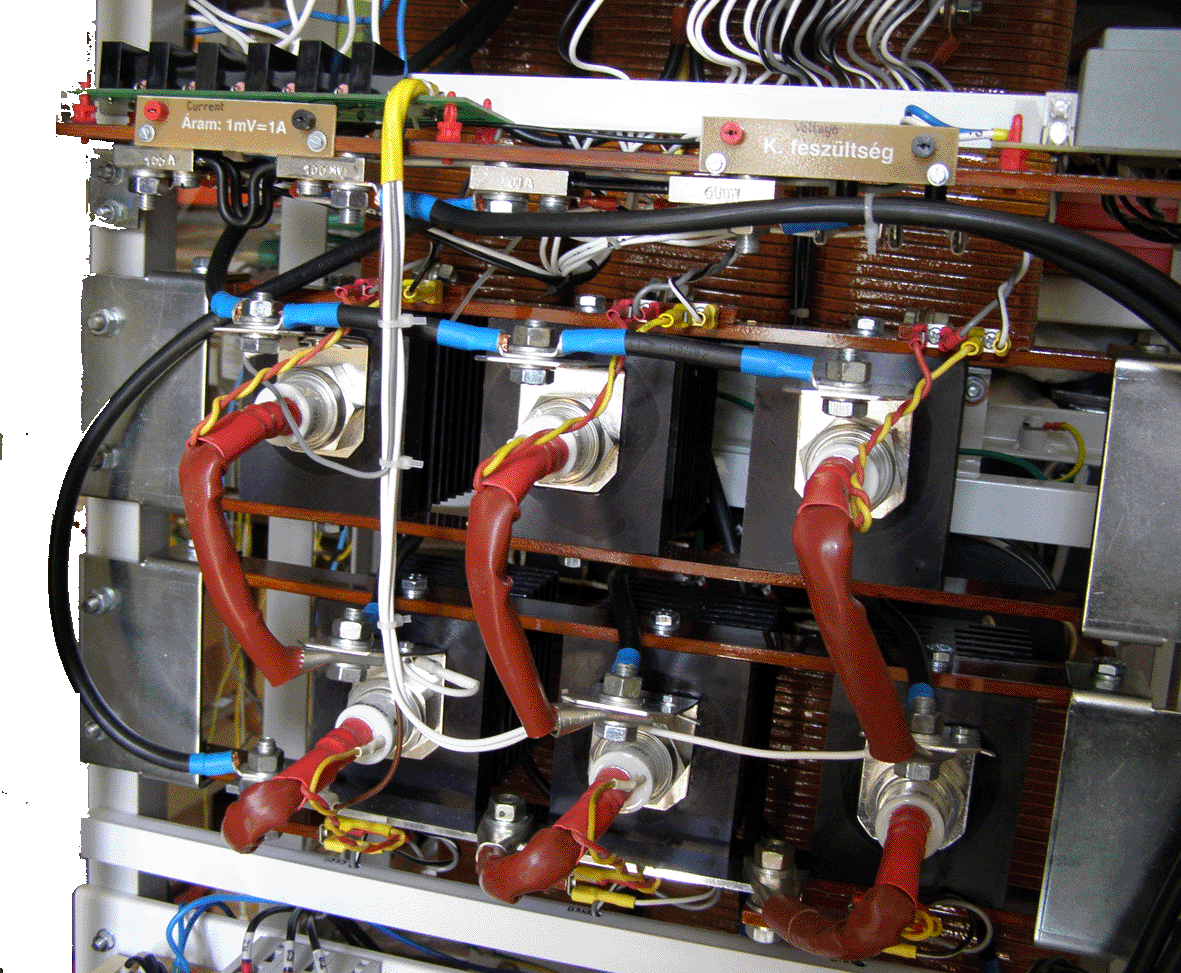

3-phase thyristor rectifier block

U_mains = 3 x 400V ±5%; 50Hz ±1%; N;

U_secunder = 3 x 10 - 3 x 100V, or as

ordered

U_dnominal = 5-135V, or as ordered

I_dnominal = 100A

Natural air-cooling

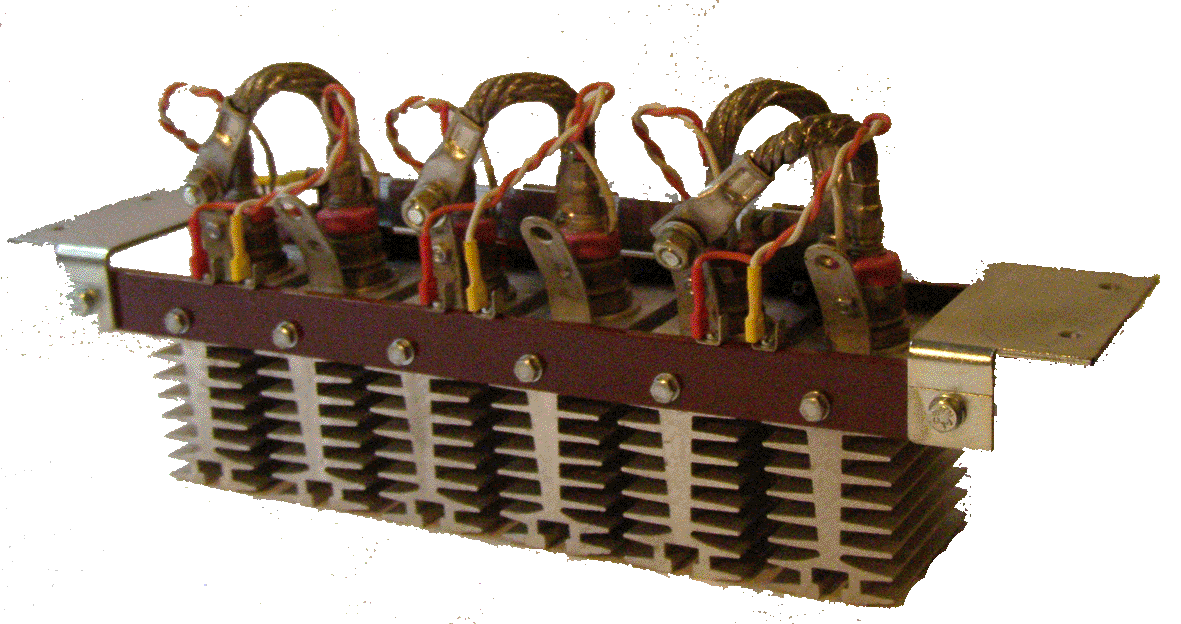

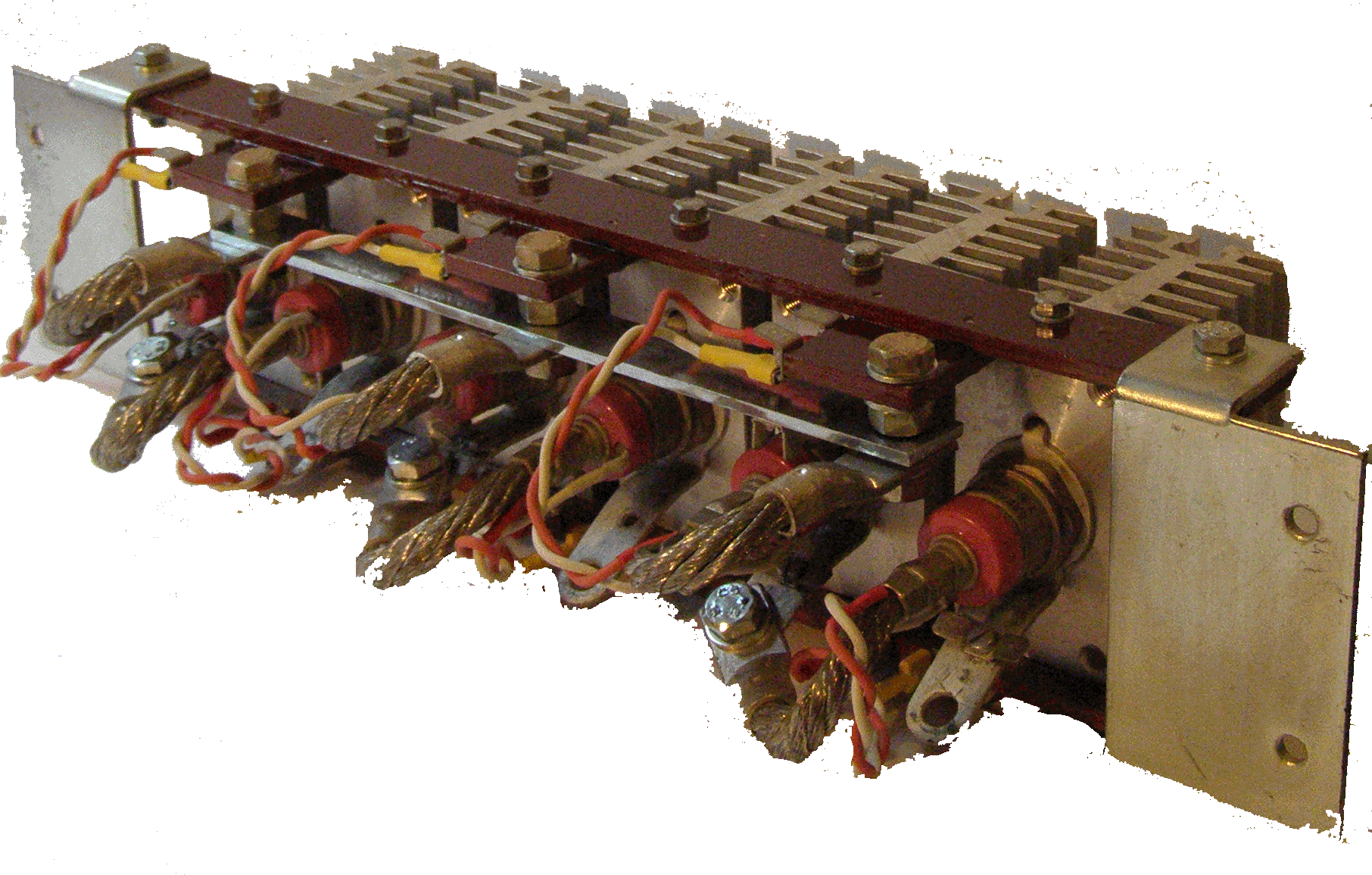

3-phase thyristor rectifier block

U_mains = 3 x 400V ±5%; 50Hz ±1%; N;

U_secunder = 3 x 10 - 3 x 100V, or as

ordered

U_dnominal = 5-135V, or as ordered

I_dnominal = 50A

Natural air-cooling
